Our Equipment

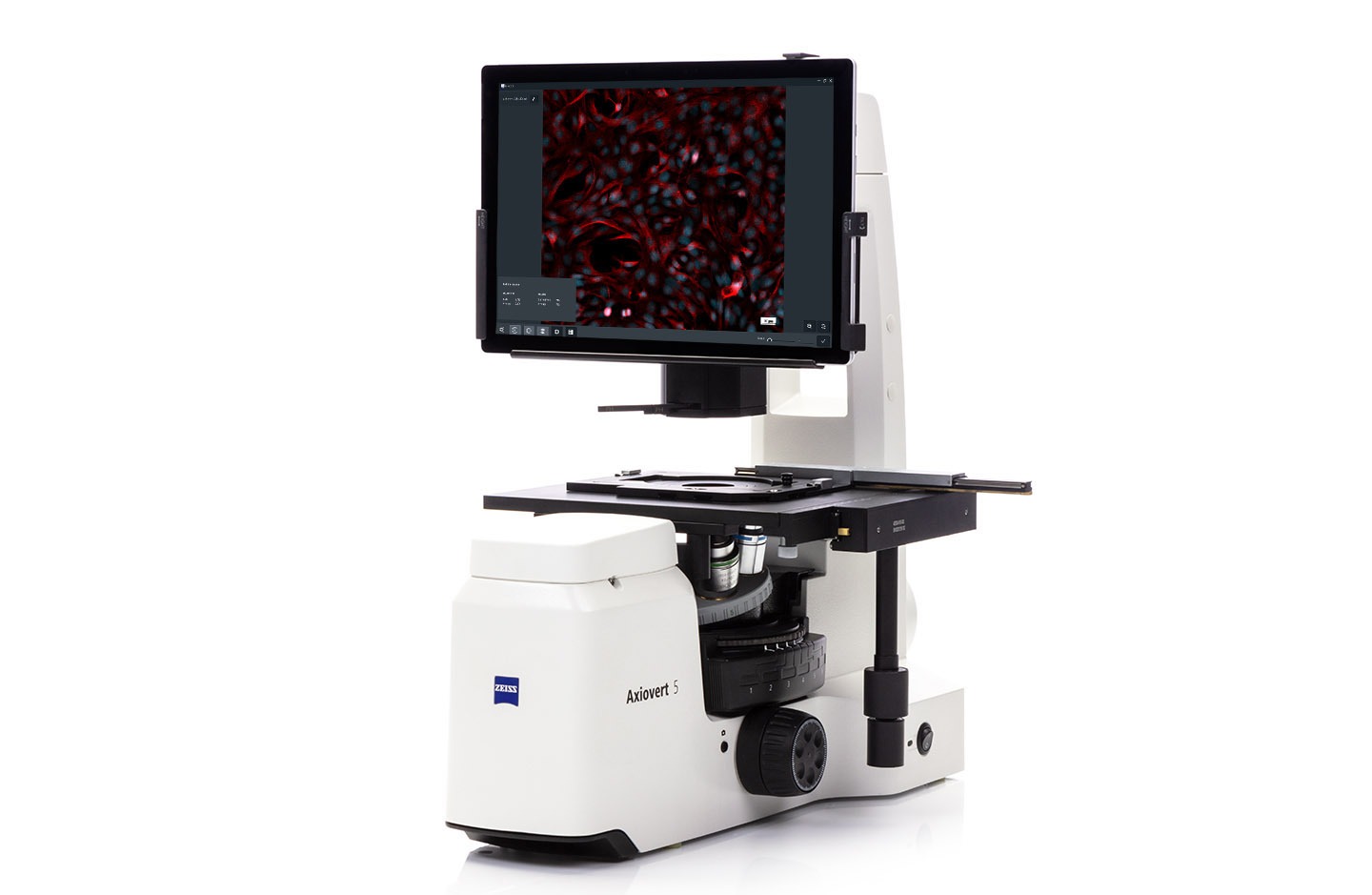

Axiovert 5 Microscope (Zeiss)
A smart microscopy system optimized for routine and advanced fluorescence imaging with fast and intuitive operation.
Fluorescence Channels:
- DAPI - Excitation ~365 nm | Emission ~445 nm (nuclear staining)
- FITC - Excitation ~470 nm | Emission ~525 nm (protein labeling)
- TRITC - Excitation ~550 nm | Emission ~605 nm (cytoskeleton and markers)
- Cy5 - Excitation ~640 nm | Emission ~690 nm (far-red imaging)
Imaging Capabilities:
- Brightfield and phase contrast imaging
- Multichannel fluorescence imaging
- One-click image acquisition (“Snap”)
- Standalone operation (no external PC required)

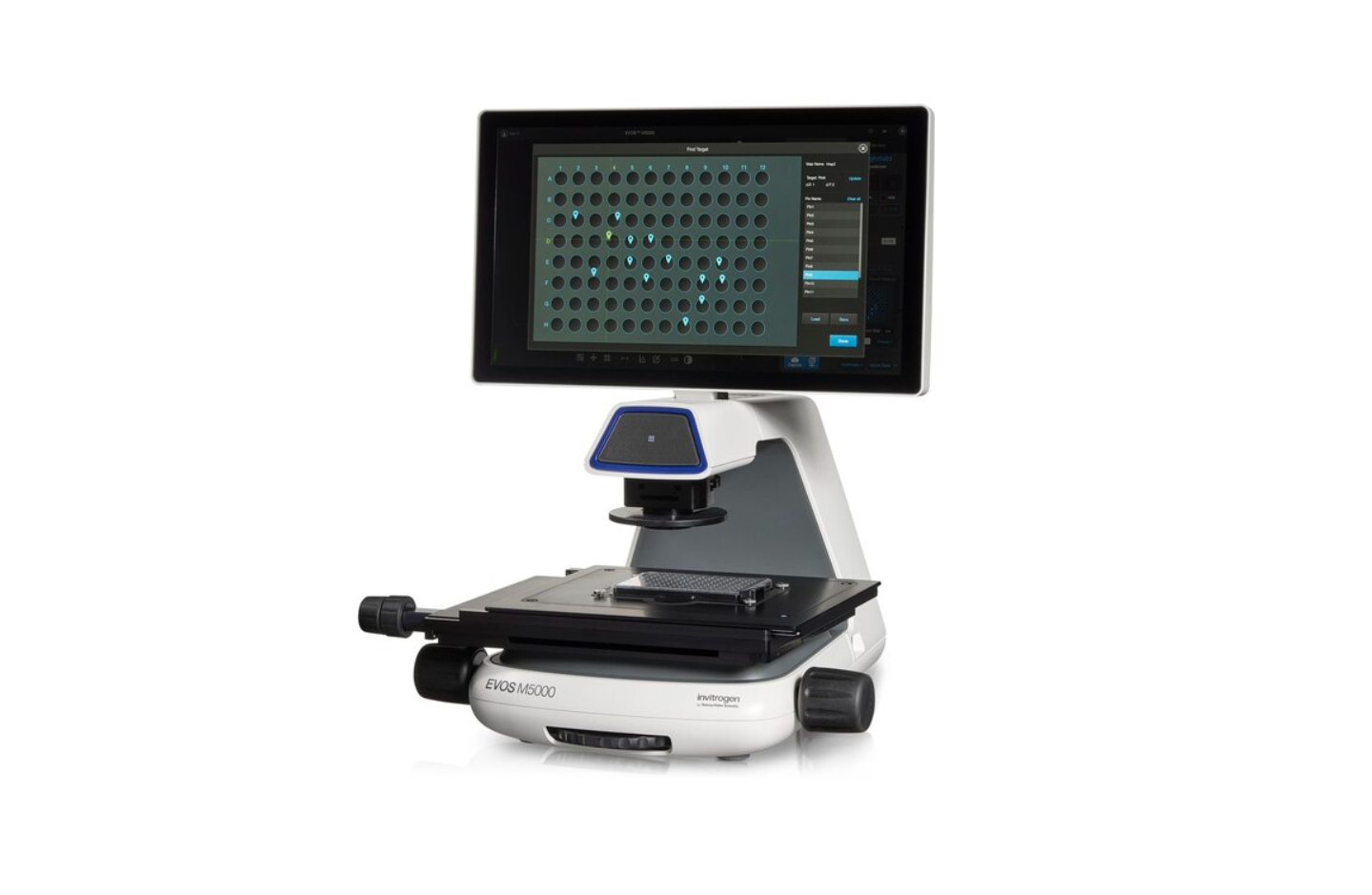

EVOS M5000 Microscope (Thermo Fisher Scientific)
A high-performance digital inverted microscope designed for fluorescence and phase contrast imaging of cells and biological samples.
Fluorescence Channels:
- DAPI - Excitation ~357 nm | Emission ~447 nm (nuclear staining)
- GFP - Excitation ~470 nm | Emission ~525 nm (protein labeling)
- RFP - Excitation ~555 nm | Emission ~605 nm (cytoskeleton and protein markers)
Imaging Capabilities:
- Real-time image processing
- Z-stack acquisition (3D imaging)
- Multi-channel overlay for co-localization
- Immunofluorescence, live-cell studies, and multi-marker experiments
Gel Documentation System
A gel documentation system designed for visualization and imaging of nucleic acids and proteins in electrophoresis gels using UV and LED illumination.
Technical Specifications:
- Camera Resolution: 5 Megapixels
- UV Transillumination: 302 nm (optional 254 / 365 nm)
- Light Sources: UV, White LED
- Sample Area: 20 × 26 cm
System Capabilities:
- Visualization of DNA and RNA bands in gels.
- Detection of fluorescent dyes (EtBr, SYBR Safe, GelRed, GelGreen, etc.)
- Protein gel imaging (Coomassie, silver stain, fluorescent dyes)
- Real-time gel observation during analysis
- PCR validation
Advanced Gel Documentation System
A high-sensitivity imaging system designed for chemiluminescence and gel documentation applications in molecular biology workflows.
Technical Specifications:
- Camera Resolution: 6 Megapixels Cooled CCD sensor
- Cooling: −30°C regulated (up to −60°C below ambient)
- Light Sources: UV, White LED
- UV transillumination: ~302 nm
- Sample Area: 20 x 26 cm
- Multi-tray support for different sample sizes
System Capabilities:
- DNA, RNA and protein gel imaging
- Chemiluminescence imaging (ECL) for Western blot detection with high sensitivity
- Detection of very weak signals using cooled camera and long exposure times
- Quantitative analysis (band intensity, molecular weight) via software

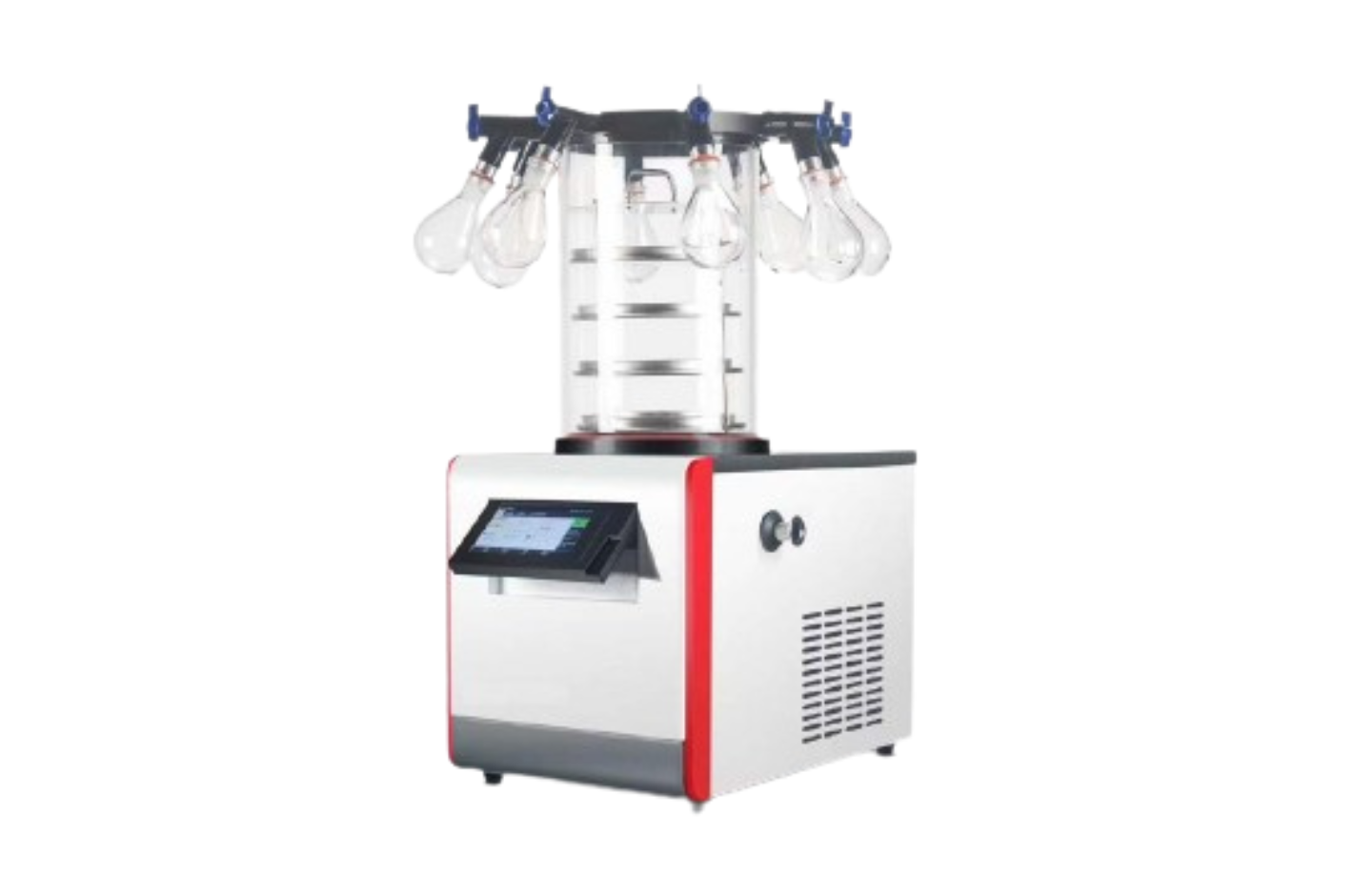

Freeze Dryer (Lyophilizer)
A vacuum freeze dryer designed for efficient removal of water from samples through sublimation, preserving structural integrity and biological activity.
Technical Specifications:
- Condenser Temperature: down to −60°C
- Vacuum Level: ≤ 10 Pa(high vacuum conditions)
- Tray Size: 200mm X4
System Capabilities:
- Gentle dehydration while maintaining protein structure and bioactivity
- Enables formation of porous structures for scaffold fabrication
- Supports stabilization and long-term storage of samples
- Used in Tissue engineering and Biomaterials research.

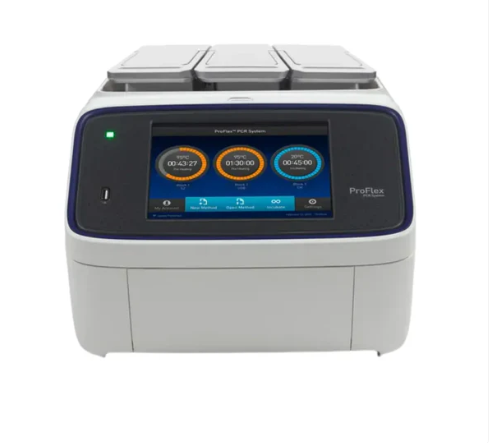

PCR ProFlex System
A high-performance thermal cycler designed for precise and flexible DNA amplification, supporting advanced PCR optimization and high-throughput workflows.
Technical Specifications:
- Temperature range: 0–100°C ±0.25°C
- Max ramp rate: up to 6.0°C/sec (block)
- Sample ramp rate: up to 4.4°C/sec
- Three Block formats
System Capabilities:
- High-precision DNA amplification with excellent temperature control
- Fast PCR cycling with high ramp rates for reduced experiment time
- Simultaneous running of multiple experiments with independent blocks
- User-friendly touchscreen interface for quick protocol setup

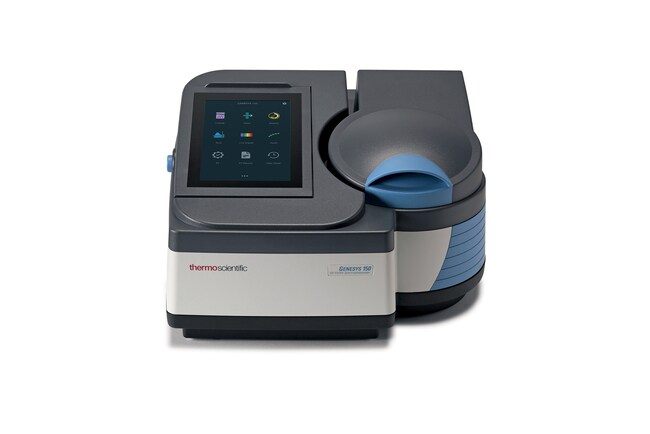

GENESYS™ 150 UV Spectrophotometer (Thermo Fisher)
A UV-Vis spectrophotometer designed for accurate concentration measurements and routine laboratory analysis.
Technical Specifications:
- Wavelength Range: ~190–1100 nm
- Spectral Bandwidth: ~2 nm
- Wavelength Accuracy: ±0.5 nm
- Photometric Range: up to ~3.5 Abs
System Capabilities:
- UV and visible absorbance measurements
- Quantitative concentration analysis (Beer-Lambert law)
- Kinetic measurements (time-based reactions)
- Multi-wavelength and spectrum scanning
- Touchscreen interface with standalone operation
Ideal for: Concentration measurements, enzyme kinetics, DNA/protein analysis, QA/QC experiments

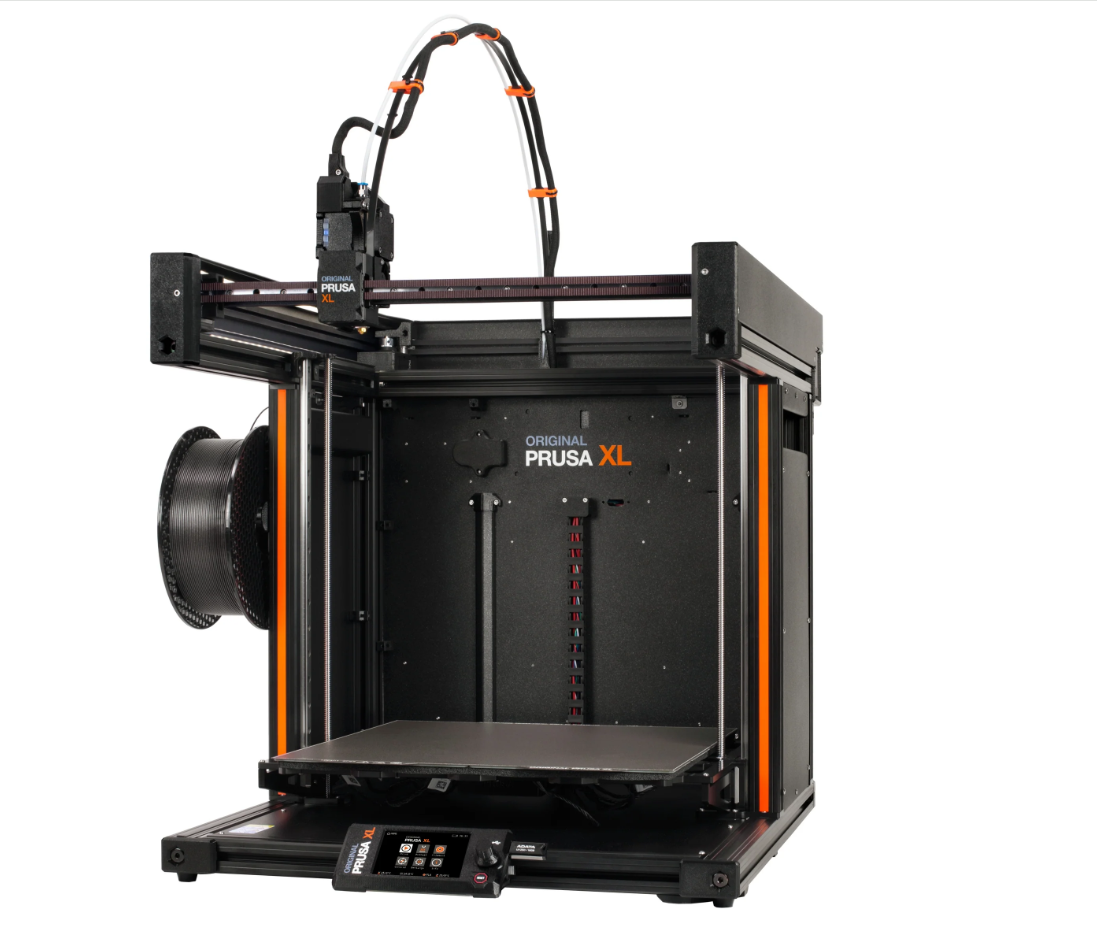

3D Printer Multi-tool (Prusa XL)
A high-precision 3D printer designed for advanced prototyping and multi-material fabrication.
Technical Specifications:
- Multi-tool head: up to 5 independent tool heads
- Nozzle diameter: 0.4 mm (standard, interchangeable)
- Build volume: 360 × 360 × 360 mm
- Layer height: ~0.05 – 0.30 mm
System Capabilities:
- Multi-material and multi-color printing with independent tool heads
- Creation of scaffolds for biomaterials and hydrogels
- Prototyping constructs and anatomical models for education and research
- Large-format printing for oversized models
- Rapid and iterative design workflows

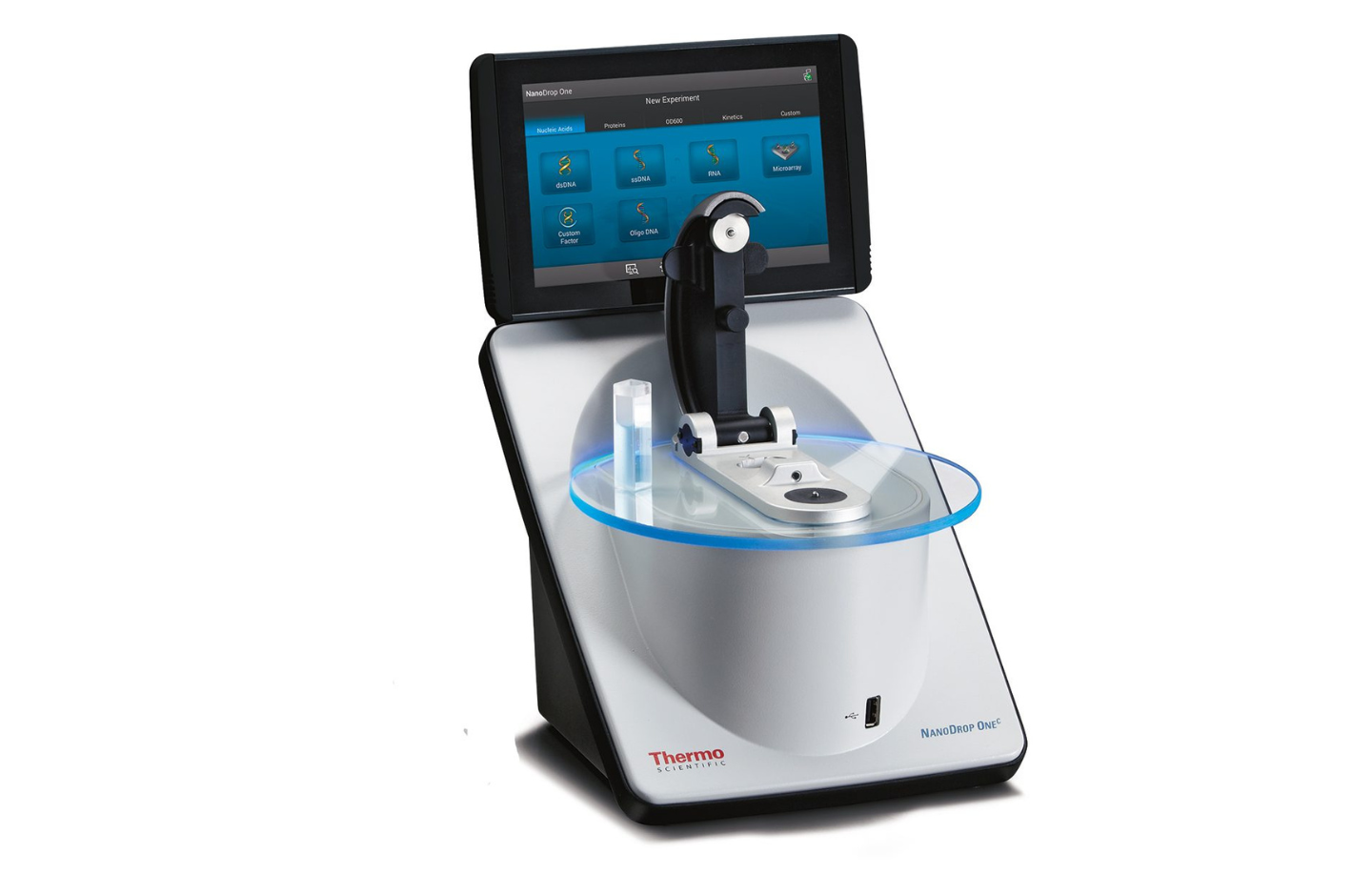

NanoDrop™ One (ThermoFisher)
A compact, high-precision spectrophotometer designed for fast and accurate nucleic acid and protein quantification using microvolume samples.
Technical Specifications:
- Wavelength Range: ~190–850 nm
- Sample Volume: 1–2 µL
- Detection Range (dsDNA): ~2–27,500 ng/µL
- Measurement Time: ~3–5 seconds per sample
System Capabilities:
- Rapid measurements in seconds
- DNA, RNA, and protein quantitative analysis
- Cuvette-free measurement using direct pedestal
- Pre-configured methods for nucleic acids and proteins
- Touchscreen interface with standalone operation
- Sample purity evaluation

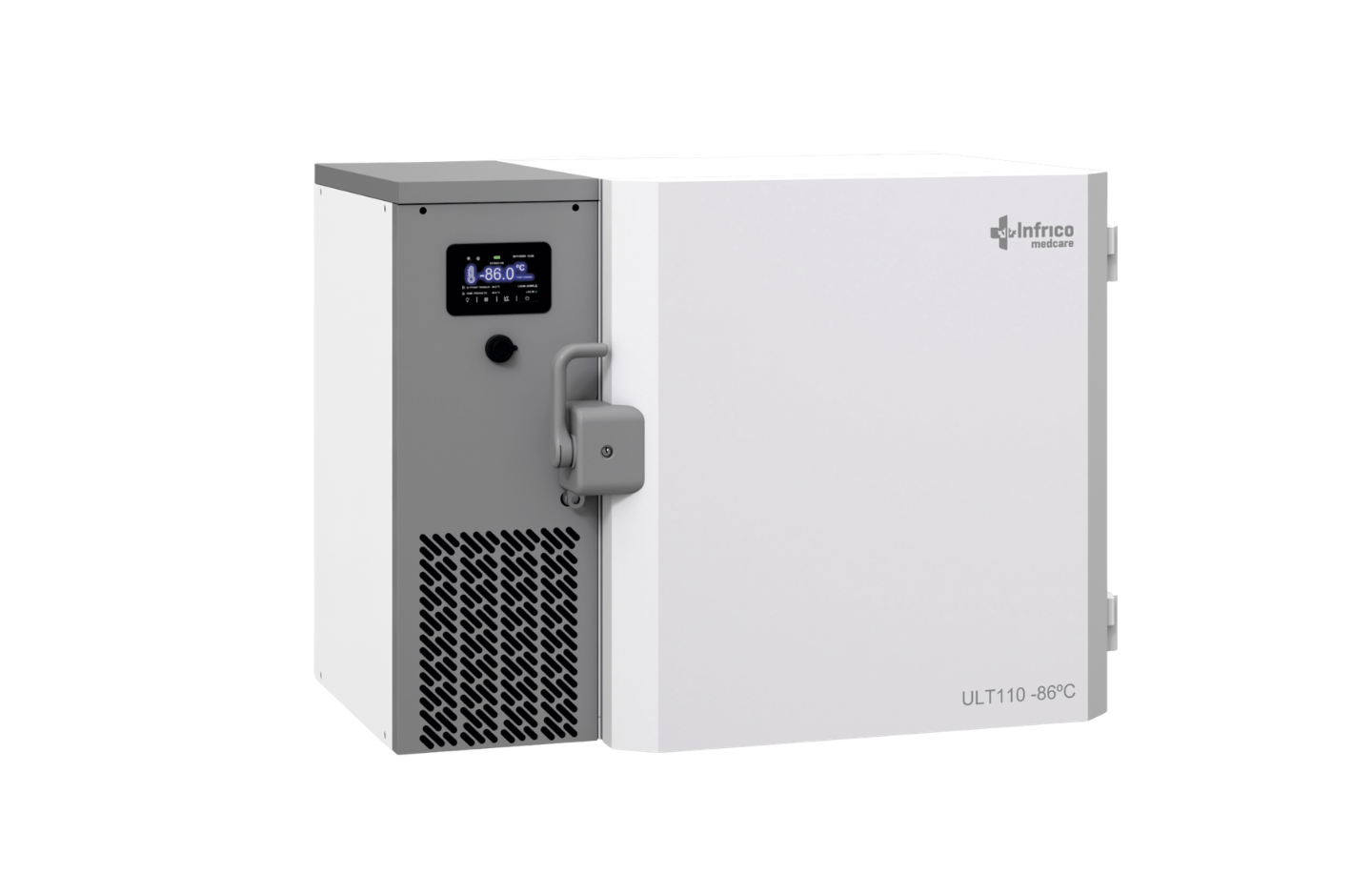

-86°C Freezer (Infrico Medcare ULT110)
An ultra-low temperature freezer designed for safe long-term storage of biological samples under stable and controlled conditions.
Technical Specifications:
- Temperature range: −80°C
- Capacity: 110–125 L
- Cooling system: Forced air cooling
- Insulation: High-efficiency thermal insulation
System Capabilities:
- Ultra-low temperature storage for sensitive biological materials
- Stable temperature control for long-term sample preservation
- Continuous monitoring with alarm system
